Kingfish

The Kingfish is a stable shape, wide and flatter-rockered – fast and fun! The perfect shape for ripping in all conditions, available in two designs and suitable for anyone who prefers PU over Epoxy.


Buy online


Rail: Boxy
Bottom: Concave into V
Ideal waves: 1-6ft
Level: Beginner – Expert


Kingfish design

Like all conventional fish shapes, the Kingfish has more volume and less rocker than typical shortboards, making it a great option for weak or mushy waves.

• Wide nose pumps volume under rider’s chest adding flotation for paddling power, stability, and easy entry into the smallest waves with quick acceleration.
• The 6mm stringer doesn’t just look pleasing, it also improves the strength and rigidity of the King Fish.
• Rocker and rail outline are combined with single to double concave bottom, with V through the tail incorporated into a wide swallowtail.
• The slight hip behind the front fins reduces the area under the back foot creating a pivot point for snappy turns. – Boxy and full rails also add to the overall volume and forgiving nature of this model.
• The Kingfish performance delivers traction, down-the-line speed, and maximum drive over the flattest of sections.
• The glassing of the Kingfish consists of 4+6 / 4 + 4oz patches over the fin cluster.


FIN CLUSTER & CONSTRUCTION
The Kingfish comes with three 3 x MFC designed fins and a 5-fin cluster on the tail section that’s Futures compatible. When the bigger days are there and you still want to go Fish, the thruster setup really comes into its own in terms of speed and drive.





Accessories Included

  • 3x MFC designed fins


Size Chart

Length Width Thickness Volume Weight +/- 5%
5'6"19 ³/⁴"2 ¹/⁸"28.1 Liters3.18 Kg
6'0"20 ¹/²"2 ³/⁸"35.1 Liters3.58 Kg
6'4"21"2 ¹/²"40.2 Liters3.97 Kg
6'8"21 ¹/²"2 ¹/²"43.7 Liters4.28 Kg
7'2"22"2 ⁵/⁸"51.3 Liters4.88 Kg

Description

Kingfish Color Options

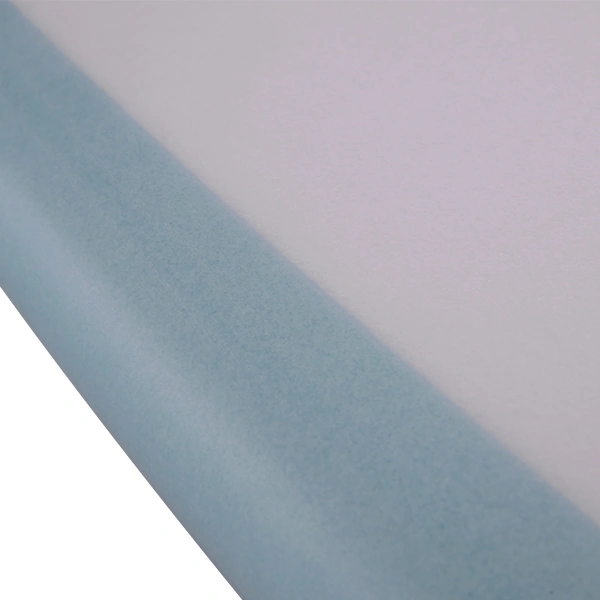

NSP Kingfish Clear and Blue Powder
Clear Blue Powder

PU Construction

Kingfish construction diagram

Absolutely gorgeous-looking handmade boards, benefiting from vintage construction techniques with some very current deep gloss color tints.

• Lay-up: Deck 4oz + 6oz; Bottom 4oz +4oz patch

• Traditional custom-shaped polyurethane (PU) core combined with a wood stringer.

• High-quality materials finished with a satin rub for a custom board finish.

• Wood center stringer for strength, flex, and rigidity,

• NSP designed FTU fin boxes (compatible with Futures®)

• Polyester deep satin rub

2022 PU Construction

Kingfish Profile

Fish Profile

Kingfish Features

Bag details

Bag Name Dimensions Designed for
Board Sock 6'6" 6'6" x stretchy 5'6", 6'0" and 6'4"
Board Sock 7'0" 7'0" x stretchy 6'8"
Board Sock 7'6" 7'6" x stretchy 7'2"
Surf day bag 6'0" 4mm 191 x 62 cm 5'6" and 6'0"
Surf day bag 7'0" 4mm 218 x 64 cm 6'4 and 6'8"
Surf day bag 7'4" 4mm 229 x 68 cm 7'2"
Surf travel bag 6'0" 8mm 191 x 62 cm 5'6" and 6'0"
Surf travel bag 7'0" 8mm 218 x 64 cm 6'4 and 6'8"
Surf travel bag 7'4" 8mm 229 x 68 cm 7'2"
