Description
Dimensions
Pick your weight units for the NSP Raceboard dimensions chart:
| Length | Width | Thickness | Volume | Weight +/- 5% |
|---|---|---|---|---|
| 14'0" | 20" | Recessed deck | 247 L | 10.74 Kg EST |
| 14'0" | 21" | Recessed deck | 253 L | 11.13 Kg EST |
| 14'0" | 22" | Recessed deck | 264 L | 11.24 Kg EST |
| 14'0" | 23" | Recessed deck | 272 L | 11.54 Kg EST |
| 14'0" | 24" | Recessed deck | 279 L | 11.93 Kg EST |
Why does the dimensions table say EST under “Weight”?
“EST” is short for “Estimated Weight”. Since all NSP Ninja Pro Carbon raceboards are hand-shaped to detail by our shapers, weight varies from one board to another within a certain variance. So to calculate a true average weight, NSP reserves the right to manufacture a certain number of boards before publishing the official (average-based) weight.
Pro Carbon Technology

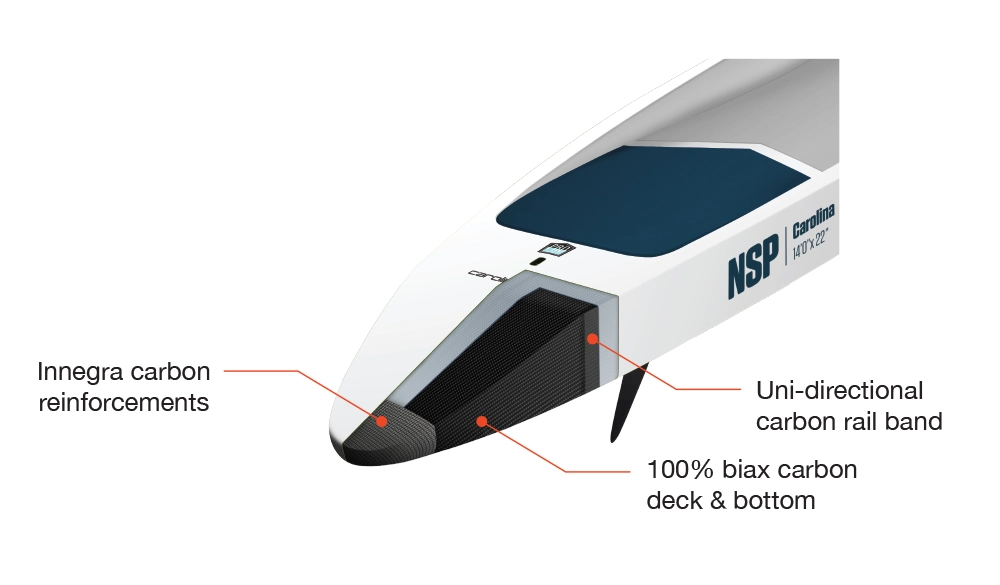

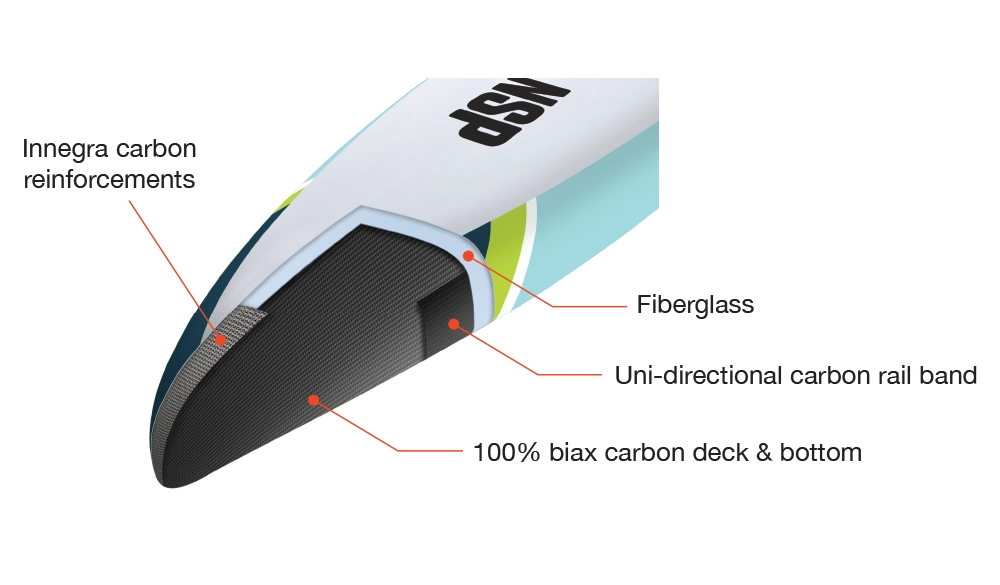

Ninja Pro Carbon construction diagram
– Cutting edge aerospace carbon fibers and ultra-light core materials are combined with our unique vacuum construction, making Pro Carbon the lightest, stiffest and fastest racing construction technology available
– Featuring a PVC reinforced deck for integrity plus carbon rails for stiffness reducing flex and making the board ultra-responsive

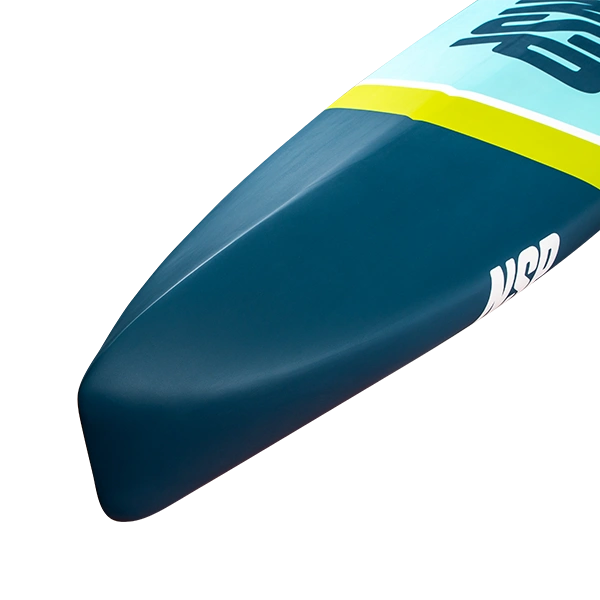

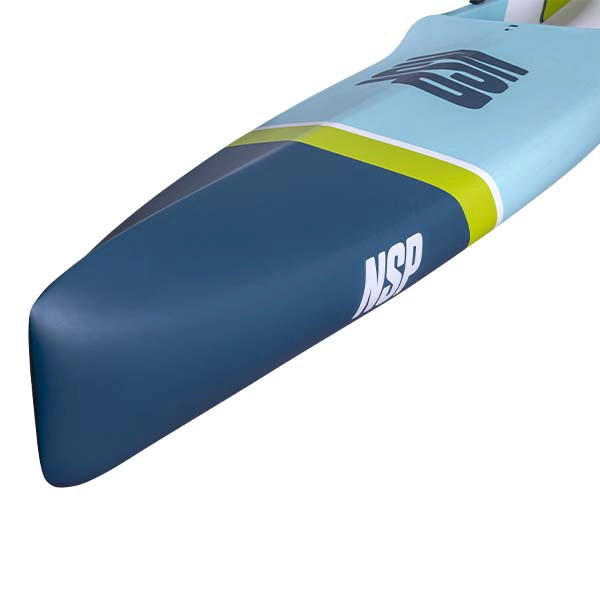

– Carbon Innegra™ reinforcement adds impact protection in the nose and tail for close quarter battles at race starts, beach race finishes and buoy turn sections
– Pro Carbon is NSP’s most high-performance construction, developed for the most elite athletes in our sport. NSP International Team Riders like Christian Andersen, Titouan Puyo, Duna Gordillo and Ty Judson and many more rider use the exact same boards in some of the most grueling races on the tour.

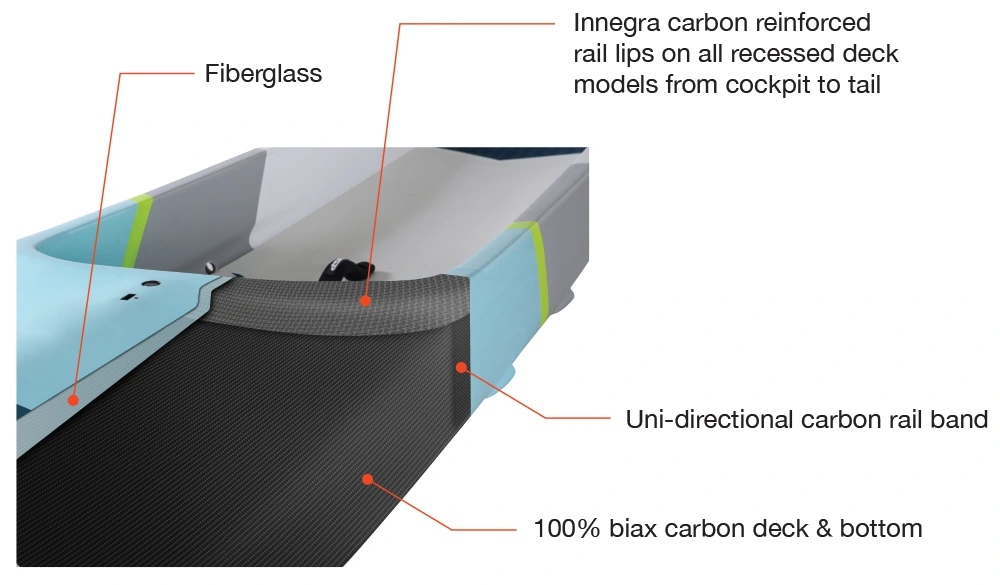

CARBON RAIL BANDS
By using Innegra™ Carbon in favor of “conventional” biaxial carbon, some of the most ding-prone areas on NSP raceboards are drastically reinforced without weight penalties. Ding resistance, durability and damage tolerance all increase, protecting your equipment. All recessed NSP Raceboards benefit from this construction, along with Uni-directional rail bands (on the side) and 100% biaxial carbon layups (on the deck and bottom).
Key Features
TECH FEATURES:
• Pro Carbon construction with carbon innegra reinforcements in key impact areas
• Heightened rail lip to reduce water intake in the standing area

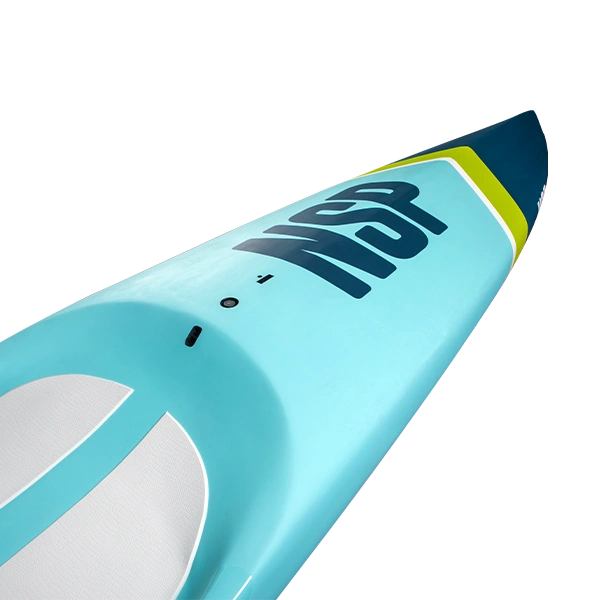

• FCS mount for GoPro or GPS and a Gore-Tex valve

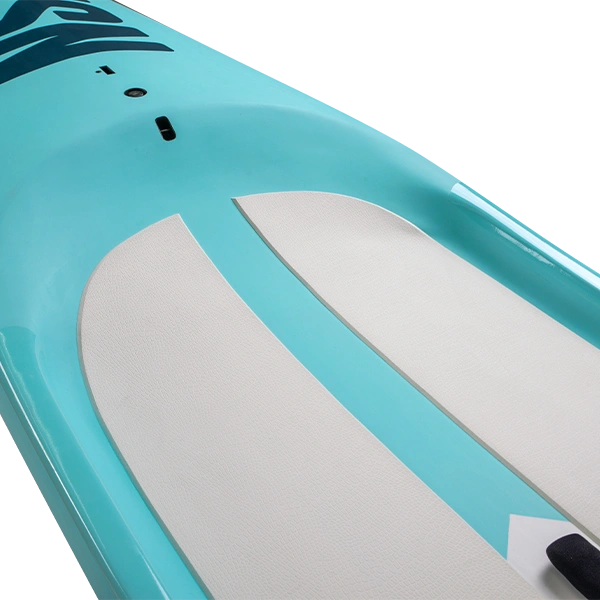

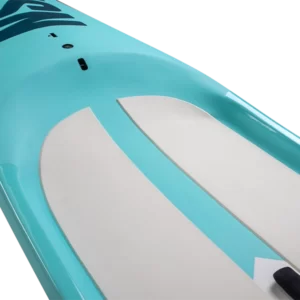

• Recessed deck for a lower centre of gravity, enhancing stability and control

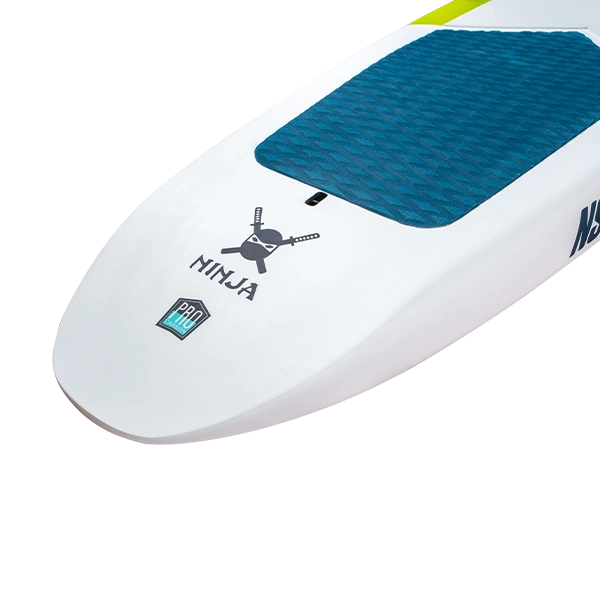

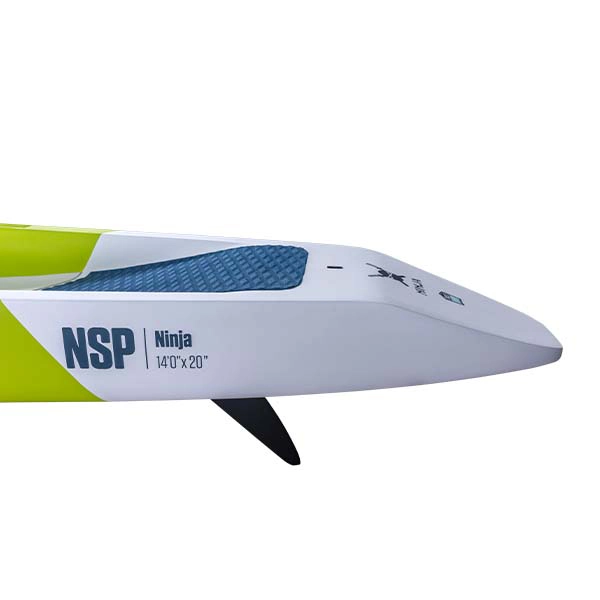

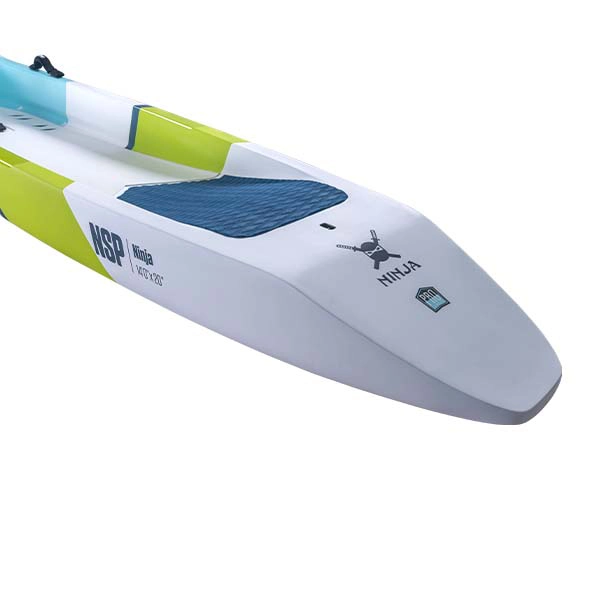

• High-performance tail for quick, effortless buoy turns
• Evolved placement of the AVS pods (Accelerator Vaccuum System)
• Dug out rails for a wider stance, improving overall balance

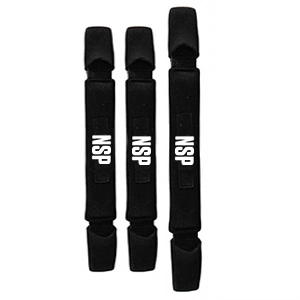

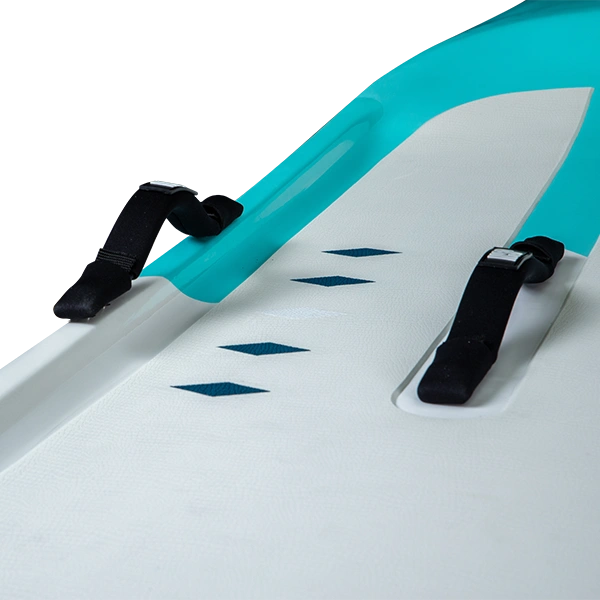

• Two side handles and one center handle for easy transport and handling
• Designed by Alain Teurquetil

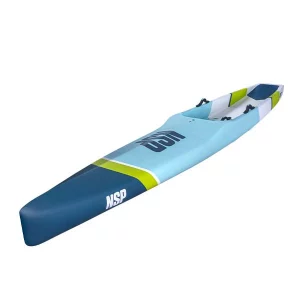

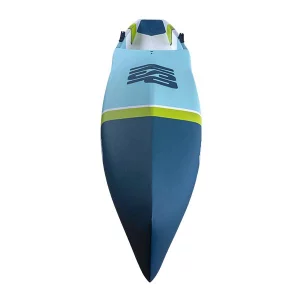

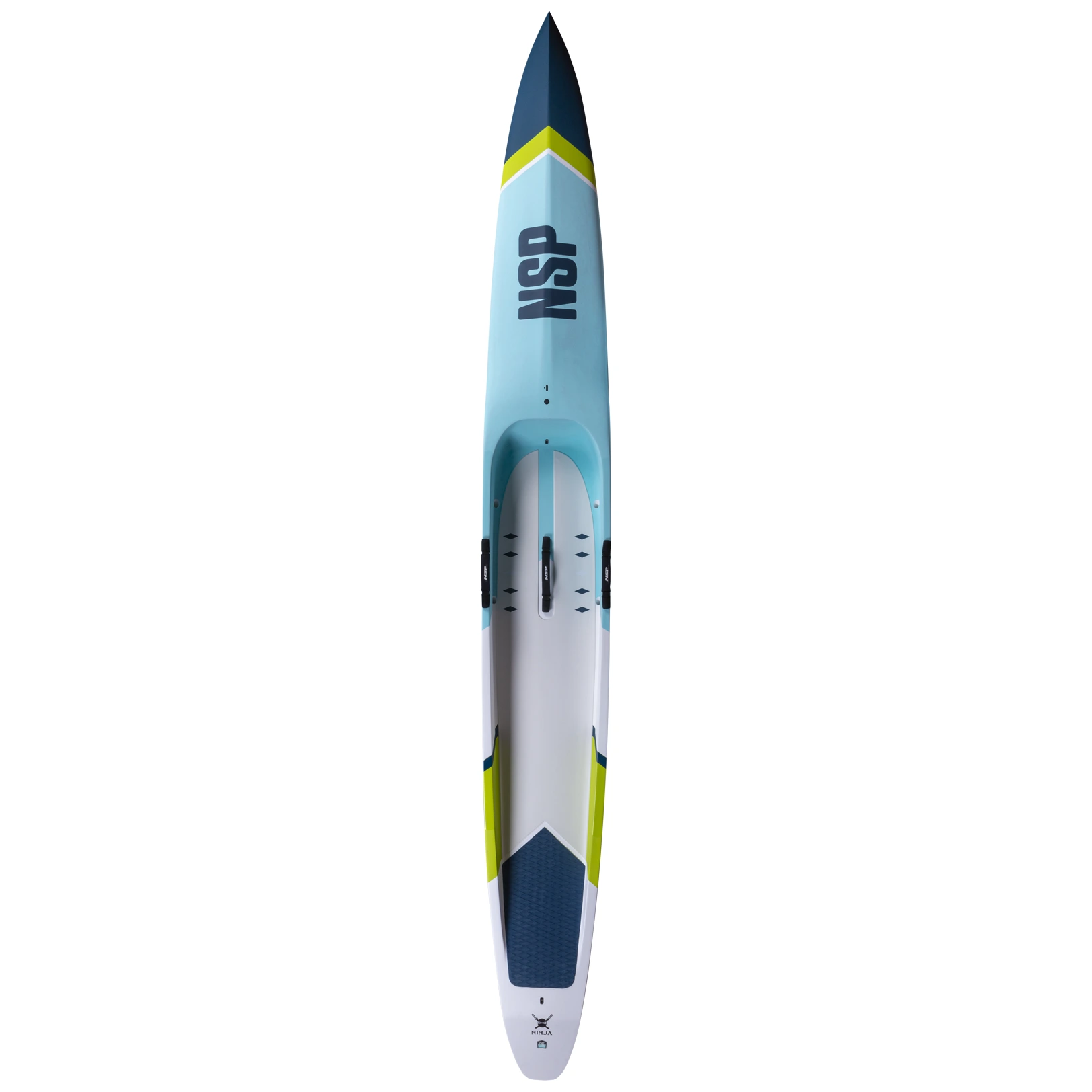

Ninja Pro Carbon
NSP Ninja Pro Carbon Gallery
